Century Regal Motor 2.5Hp Ee Northstar Ur 56J Rnd Th | USN1252
Pool Professionals – Get 5% Instant Cash Back –
Not a Pro? This price is already yours — no membership needed.
Free shipping on some orders above $99
Easy returns within 30 days
Personal advice. Dedicated account manager
Highlights
2.5 hp
Horsepower
208-230 V
Voltage
Y56J
Frame Size
1
Phase
1 lbs
Weight
Century
Brand
Product Description

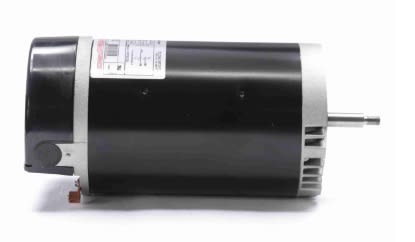

The Century® USN1252 is an up-rated replacement pool and spa pump motor for Hayward Northstar™ pumps, listed at 2.5 HP, 3450 RPM, 208-230 V, 56J frame with a threaded shaft.
It is a switchless design with an E-coated main frame for corrosion resistance, low noise, and cool running for longer winding life. The shaft is 7/16-20 UNF-2A RH threaded.
Specifications: ambient temperature 50 deg C; ball bearings; brand Regal Beloit; 6-1/2 inch diameter; continuous duty cycle; high efficiency group; open dripproof enclosure; black finish; aluminum flange; 56J frame; 60 Hz; full load amps 11.0-10.2/20.4 A; 2 HP; Class B insulation; PSC motor design; CCWPE shaft rotation; automatic thermal protection; C-face mounting, no base; overall length 13.85 inch; 1-phase; 3450 RPM; 1.20 service factor; threaded shaft design, 5/8 inch diameter, 2-9/16 inch long, 303 stainless steel; UL approved; sub-brand Century®; type up-rated, CX; voltage rating 115/208-230 V.
Specs
Phase
1
Voltage
208-230 V
Frame Size
Y56J
Horsepower
2.5 hp
Manuals & Documents
