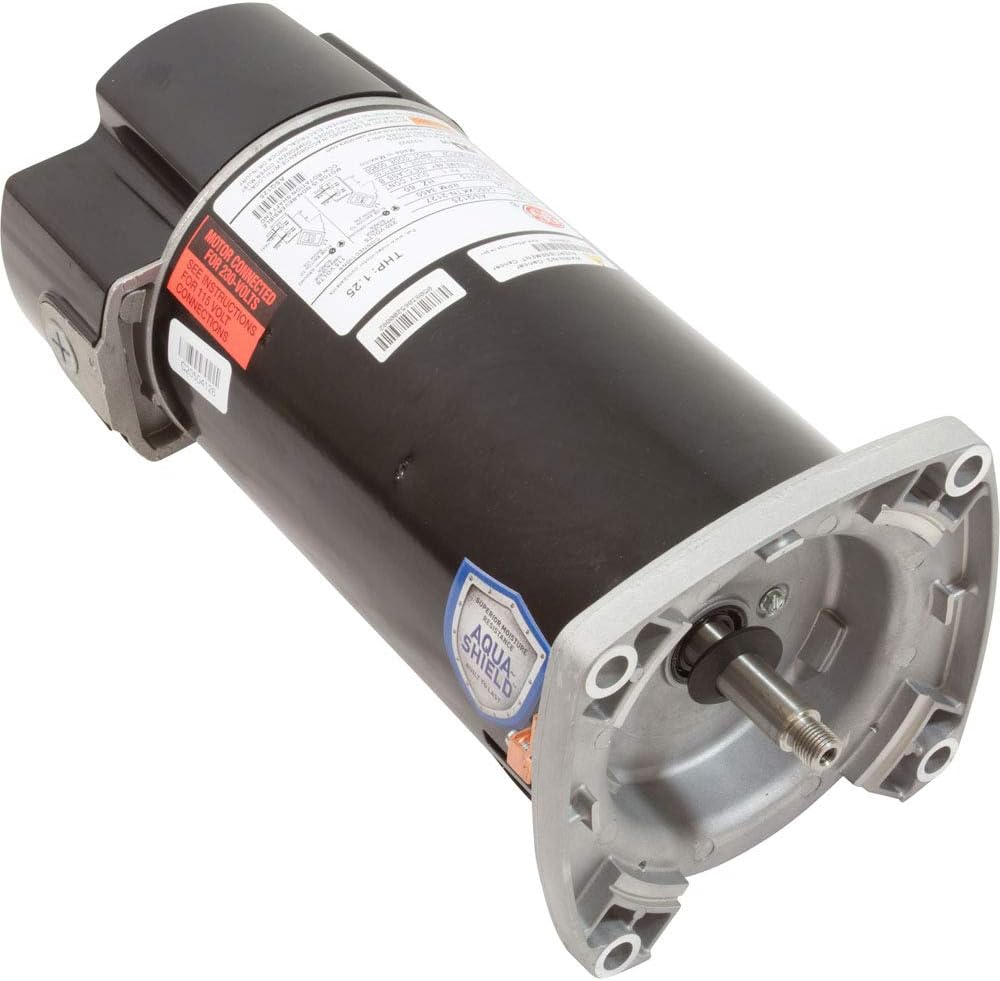

US Motors Aqua-Shield Pump Motor 1.25 hp Single-Phase 110 to 120/230V 48Y Square Flange | ASQ125
Brand:
US MotorsSKU:
NIDASQ125
MPN:
ASQ125
Pool Professionals – Get 5% Instant Cash Back –
Not a Pro? This price is already yours — no membership needed.
Free shipping on some orders above $99
Easy returns within 30 days
Personal advice. Dedicated account manager
Highlights
1.25 hp
Horsepower
110-120/230 V
Voltage
48Y
Frame Size
1
Phase
21 lbs
Weight
US Motors
Brand
Product Description
Aqua-Shield ASQ125 THP electric motor, 1.25 total horsepower, 48Y frame with square flange. It is a two-compartment pool and spa motor rated for continuous duty and thermal protection, designed for wet environments. The motor is suited for pump applications where sealed bearings and shaft protection are required and includes a 1/2-20 UNF threaded shaft.
Key Benefits
- 1.25 THP 48Y frame, square flange
- 1/2-20 UNF threaded shaft
- Two-compartment construction for moisture control
- Sealed ball bearings with triple-drive-end protection
- Optimized internal airflow to reduce heat and moisture
- Internal bearing cover protects pump-end bearing
- Class B insulation, continuous duty, 50°C ambient rating
Specs
Phase
1
Voltage
110-120/230 V
Frame Size
48Y
Horsepower
1.25 hp
