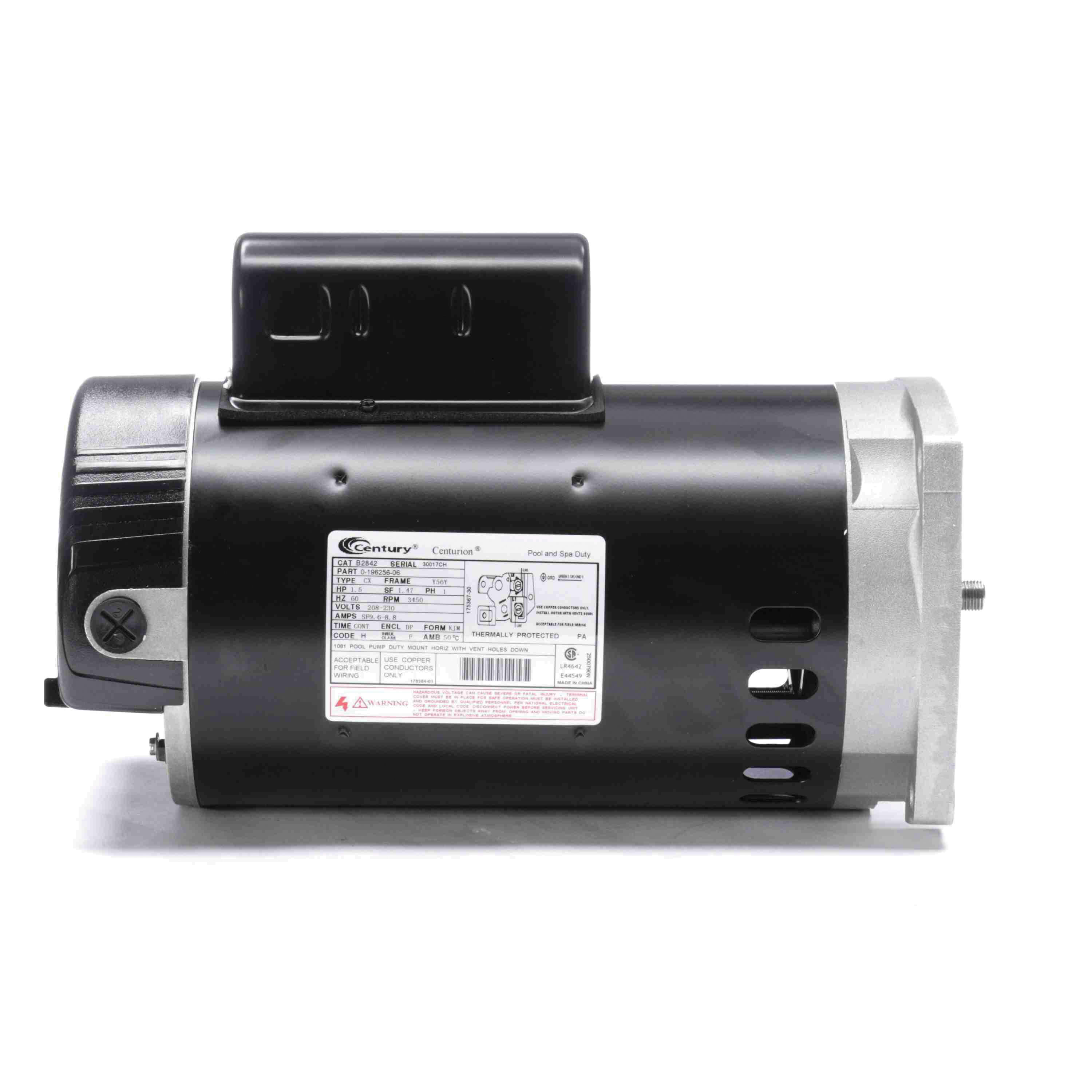

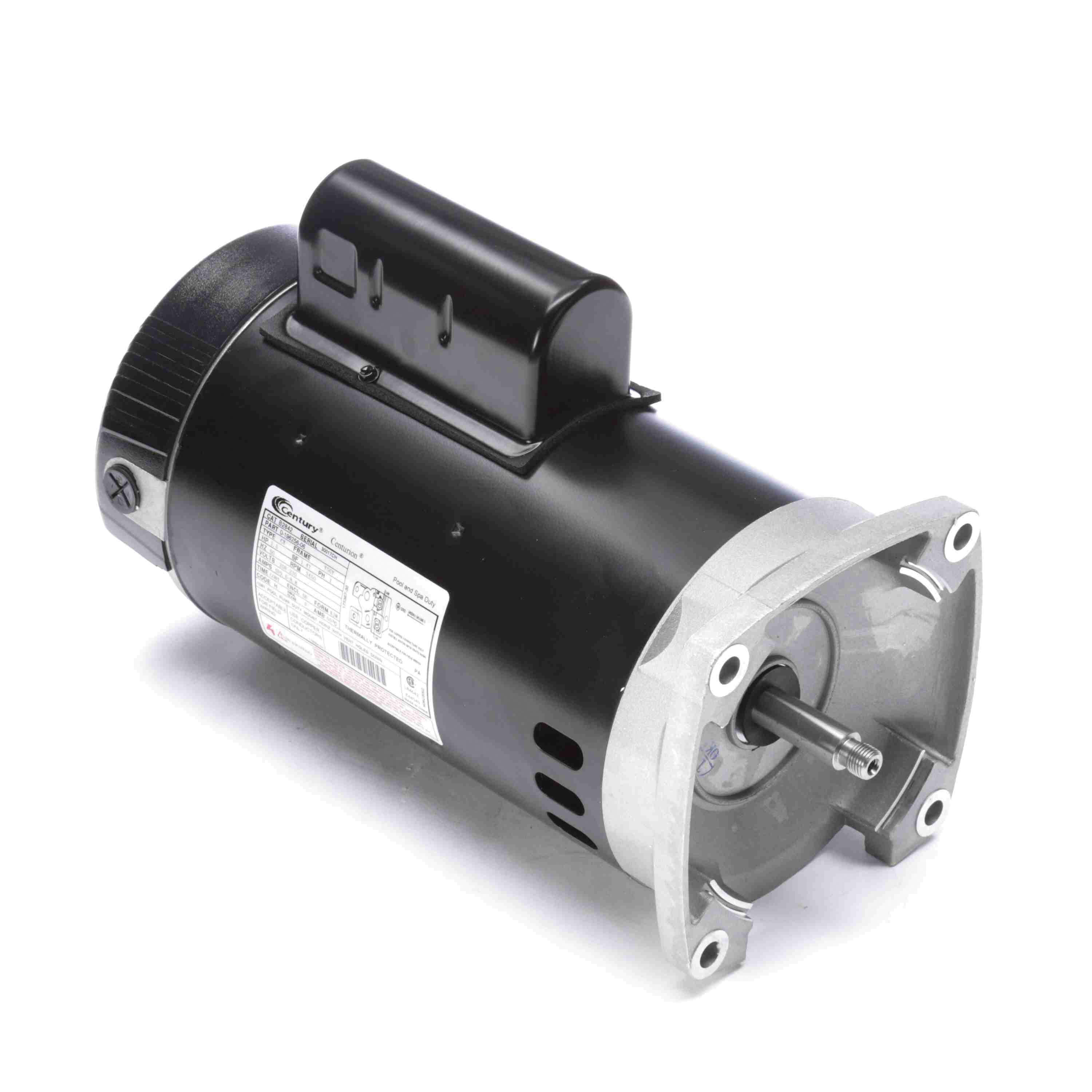

Century Pool Pump Motor 1.5HP 1-Speed 1 Phase 60Hz 208-230V 56Y Frame B2842

Name: Century Pool Pump Motor 1.5HP 1-Speed 1 Phase 60Hz 208-230V 56Y Frame B2842
Brand: Century
SKU: CRMB2842
Price: 490.89 USD
Availability: InStock

Brand:

Century

SKU:

CRMB2842

Century Pool Pump Motor 1.5HP 1-Speed 1 Phase 60Hz 208-230V 56Y Frame B2842

Century Pool Pump Motor 1.5HP 1-Speed 1 Phase 60Hz 208-230V 56Y Frame B2842 image 2

Century Pool Pump Motor 1.5HP 1-Speed 1 Phase 60Hz 208-230V 56Y Frame B2842 image 3

Century Pool Pump Motor 1.5HP 1-Speed 1 Phase 60Hz 208-230V 56Y Frame B2842 image 4

Century Pool Pump Motor 1.5HP 1-Speed 1 Phase 60Hz 208-230V 56Y Frame B2842 image 5

Pool Professionals – Get 5% Instant Cash Back –

Not a Pro? This price is already yours — no membership needed.

Free shipping on some orders above $99

Easy returns. No restocking fee for 90 days

Personal advice. Dedicated account manager

Description

Open & accessible terminal board & wiring compartment
Voltage change device
Sealed ball bearings
50°C ambient
Stainless steel shaft
UL 1081 design
The Century B2842 pool pump motor is a 1.5 hp, single-phase permanent split capacitor unit rated at 208-230 V.
The B2842 uses a Y56Y frame size and features a stainless steel shaft.
Sealed ball bearings come standard, and the motor is rated for operation in ambient temperatures up to 50°C.
A voltage change device allows switching between the supported voltage ratings.
The wiring compartment and terminal board are open and accessible, which simplifies electrical connections during installation.
This motor follows a UL 1081 design standard.
Confirm shaft and mounting dimensions against your existing pump housing before ordering.
