Century Flex 48 Pool Pump Motor 1.5 hp Single-Phase 115/230V 48Y Thru-Bolt | BN35V1
Pool Professionals – Get 5% Instant Cash Back –
Not a Pro? This price is already yours — no membership needed.
Highlights
1.5 hp
Horsepower
115/230 V
Voltage
48Y
Frame Size
1
Phase
21.72 lbs
Weight
Century
Brand
Product Description

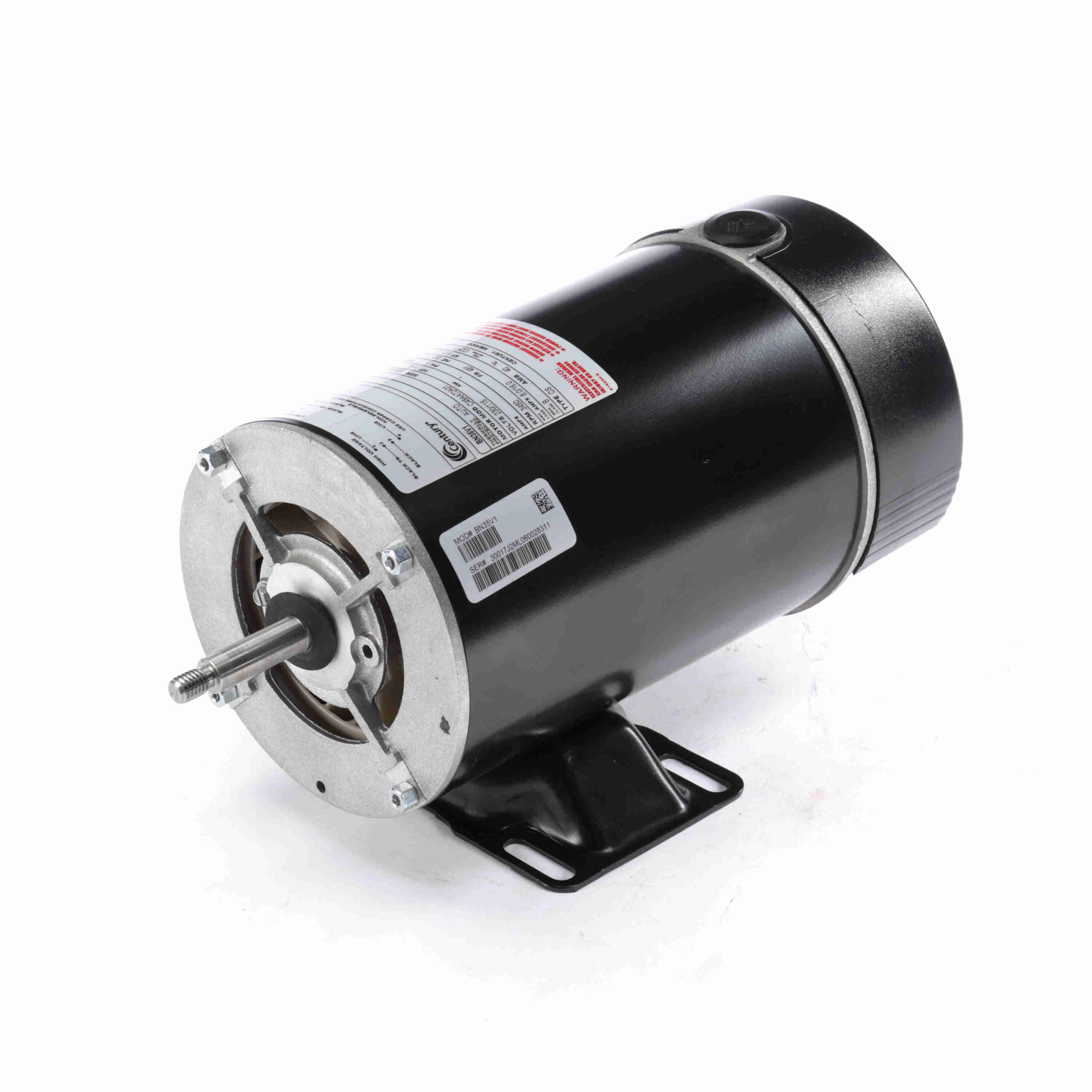

1.5 HP single-phase pool pump motor designed as a replacement for Century/A.O. Smith style motors used on residential and light-commercial pumps. Intended for 60 Hz systems with 230/115V wiring and a 48Y frame, it mounts to standard 48/56 bases and fits pumps that accept a 3-1/2" shaft height. The motor is suited for outdoor pool equipment environments with a 40°C ambient rating.
Key Benefits
- 1.5 HP single-phase motor, 60 Hz, 230/115V
- 48Y frame sizing, fits 48/56 base mounting
- 3-1/2" shaft height for standard pool pump shafts
- Stainless steel threaded shaft for corrosion resistance
- 12 and 3 o'clock conduit entries for wiring flexibility
- Sealed ball bearings for reduced maintenance
- UL 1081 design certification
- Four thru bolts on a 5.146" bolt circle for secure mounting
- Rated for 40°C ambient operating temperature
- Rigid base for stable installation
Specs
Phase
1
Voltage
115/230 V
Frame Size
48Y
Horsepower
1.5 hp
